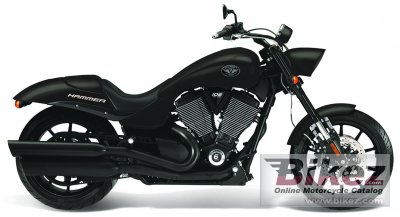

Victory Hammer S 106 20122012 Victory Hammer S 106 specifications, pictures, reviews and rating |
| Victory's profilation of this bike |
| A sharp looking red wheel stripe reminiscent of racing/muscle car styling makes these custom wheels ideal for the Hammer S. Even while standing still they suggest this is a high performance bike to be reckoned with. Kick the Hammer S into first and there is immediately no doubt . |
| General information | |
|---|---|
| Model | Victory Hammer S 106 |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1737.1 ccm (106.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 50 degree V-Twin. Self-adjusting cam chains, hydraulic lifters. |
| Output | 97.0 HP (70.8 kW)) |
| Torque | 153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
| Compression | 9.4:1 |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic Fuel Injection with dual 45mm throttle body |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate |
| Driveline | Carbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator. |
| Exhaust system | Staggered slash-cut dual exhaust with crossover |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.7° |
| Trail | 140 mm (5.5 inches) |
| Front suspension | Inverted cartridge telescopic fork, 43 mm diameter |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Single, mono-tube gas, cast aluminum with rising rate linkagel, preload adjustable spring |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 250/40-R18 |
| Front brakes | Double disc. Floating rotor with 4-piston calipers |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating rotor with 2-piston caliper |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 304.8 kg (672.0 pounds) |
| Power/weight ratio | 0.3182 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length | 2365 mm (93.1 inches) |
| Ground clearance | 147 mm (5.8 inches) |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Starter | Electric |
| Electrical | 12 volts / 18 amp hours battery. |
