General information |
|
Motorcycle name
|

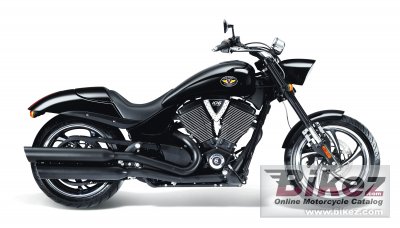

Victory Hammer 8 Ball |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1731.0 ccm (105.63 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with dual 45mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Driveline
|
Primary Drive: Gear drive with torque compensator. Final Drive: Carbon Fiber Reinforced Belt. |
|
Exhaust system
|
Staggered slash-cut dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.7° |
|
Trail
|
140 mm (5.5 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43 mm diameter |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas, cast aluminum with rising rate linkage, preload adjustable spring |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
250/40-R18 |
|
Front brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
305.0 kg (672.4 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
5.00 litres (5.28 US quarts) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Electrical
|
Battery: 12 volts / 18 amp hours. Charging System: 38 amps max output |
