| General information |
|---|

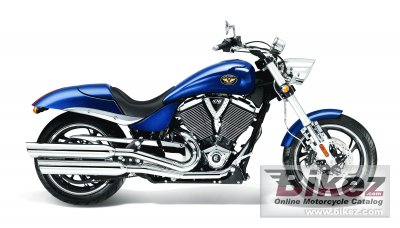

| Model: | Victory Hammer |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Price as new: | US$ 17799. MSRP depend on country, taxes, accessories, etc. |
| Rating: | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1731.0 ccm (105.63 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 97.0 HP (70.8 kW)) |
| Bore x stroke: | 101.0 x 108.0 mm (4.0 x 4.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic with 45mm throttle bodies |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Air |
| Gearbox: | 6-speed |
| Driveline: | Carbon Fiber Reinforced Belt. |
| Exhaust system: | Staggered slash-cut dual exhaust with crossover |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 32.7° |
| Trail: | 140 mm (5.5 inches) |
| Front suspension: | Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
| Rear suspension: | Single, mono-tube gas,cast aluminum with rising rate linkage , 3.0in/75mm travel, preload adjustable spring |
| Front tyre: | 130/70-R18 |
| Rear tyre: | 250/40-R18 |
| Front brakes: | Double disc. 4-piston caliper |
| Diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. 2-piston caliper |
| Diameter: | 300 mm (11.8 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 305.0 kg (672.4 pounds) |
| Power/weight ratio: | 0.3180 HP/kg |
| Seat height: | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length: | 2365 mm (93.1 inches) |
| Ground clearance: | 147 mm (5.8 inches) |
| Wheelbase: | 1669 mm (65.7 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Reserve fuel capacity: | 3.50 litres (0.92 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Other specifications |
|---|
| Color options: | Solid Imperial Blue Metallic |
| Starter: | Electric |
| Electrical: | Battery: 12 volts / 18 amp hours. Charging System: 38 amps max output. |
| Further information |
|---|
