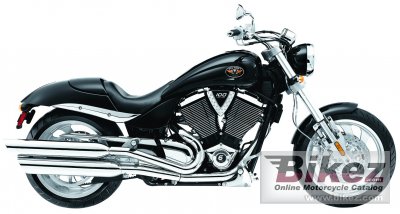

Victory Hammer 20052005 Victory Hammer specifications, pictures, reviews and rating |
| Victory's profilation of this bike |
| THE NEW HAMMER™. IT HITS YOU LIKE A CHROMED-OUT KNUCKLE SANDWICH. Here’s one that’s about as subtle as an uppercut to the chin. Introducing the all-new Victory Hammer. American brute muscle and radical custom style that will sock your lights out. |
| General information | |
|---|---|
| Model | Victory Hammer |
| Year | 2005 |
| Category | Custom / cruiser |
| Price as new | US$ 16499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1638.8 ccm (100.00 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.8:1 |
| Bore x stroke | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic Fuel Injection with 44mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate |
| Exhaust system | Large bore slash-cut dual exhaust with common volume |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 33.1° |
| Front suspension | Inverted cartridge telescopic fork, 43mm fork tube, 5.1in |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Single, mono-tube gas, Forged and Cast Aluminum with rising rate linkage swing-arm. Preload adjustable spring |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 250/40-R18 |
| Front brakes | Single disc. Floating rotor with 4-piston caliper |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating rotor with 2-piston caliper |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 298.0 kg (657.0 pounds) |
| Overall height | 671 mm (26.4 inches) |
| Ground clearance | 147 mm (5.8 inches) |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Other specifications | |
| Color options | Solid Colors: Black, Indy Red, Cosmic Sunburst, Flame Yellow. Multiple Colors: Indy Red with Tribal Tattoo, Toxic Green with Tribal Tattoo. |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Victory Hammer discussion group or the general Victory discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
