General information |
|
Motorcycle name
|

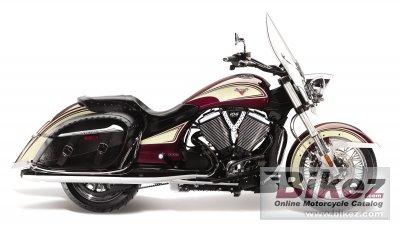

Victory Cross Roads Classic |
|
Model year
|
2013 |
|
Category
|
Touring |
| Price as new | US$ 17999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1737.1 ccm (106.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Self-adjusting cam chains, hydraulic lifters |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with dual 48mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Driveline
|
Carbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator. |
|
Exhaust system
|
Split dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
142 mm (5.6 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel |
|
Rear suspension
|
Single, mono-tube gas, cast aluminum with constant-rate linkage, 4.7 in / 120 mm travel, air adjustable |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/60-R16 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
130/70B18 Dunlop 491 Elite II |
|
Physical measures and capacities |
|
Dry weight
|
350.2 kg (772.0 pounds) |
|
Seat height
|
667 mm (26.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2703 mm (106.4 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
21.95 litres (5.80 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Burgundy and Khaki w/graphics |
|
Starter
|
Electric |
|
Electrical
|
12 volts / 18 amp hours battery. |
|
Carrying capacity
|
Saddle bags. 17.4 gallons of storage space. |
|
Comments
|
Windscreen |
