General information |
|
Motorcycle name
|

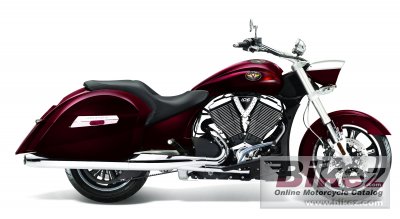

Victory Cross Roads |
|
Model year
|
2011 |
|
Category
|
Touring |
| Price as new | US$ 14999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1737.1 ccm (106.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Self-adjusting cam chains, hydraulic lifters |
|
Torque
|
153.0 Nm (15.6 kgf-m or 112.9 ft.lbs) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with dual 45mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Driveline
|
Carbon Fiber Reinforced Belt |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
142 mm (5.6 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas, cast aluminum with constant rate linkage, 4.7 in/120 mm travel, air adjustable spring |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
180/60-R16 |
|
Front brakes
|
Double disc. Floating rotor with 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
338.0 kg (745.2 pounds) |
|
Seat height
|
667 mm (26.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2652 mm (104.4 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
21.95 litres (5.80 US gallons) |
|
Oil capacity
|
4.80 litres (5.07 US quarts) |
|
Other specifications |
|
Color options
|
Solid Black, Crimson Red |
|
Starter
|
Electric |
|
Electrical
|
12 volts / 18 amp hours battery |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-40 |
|
Oil filter
|
K & N - KN-198 |
|
Brake fluid
|
DOT 4 |
|
Battery
|
CTX20HL-BS |
|
Spark plugs
|
NGK DCPR6E |
|
Belt teeth
|
154 |
|
Belt width
|
28 mm |
|
Pulley teeth
|
33/70 (front/rear) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
