General information |
|
Motorcycle name
|

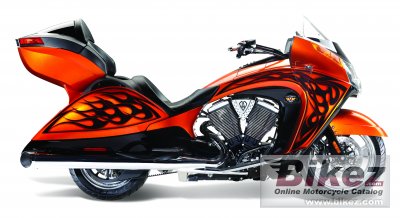

Victory Arlen Ness Vision |
|
Year of manufacture
|
2012 |
|
Type
|
Touring |
| Price as new | US$ 25799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1737.1 ccm (106.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
50 degree V-Twin. Self-adjusting cam chains, hydraulic lifters. |
|
Output
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Dual 45mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Driveline
|
Carbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator. |
|
Exhaust system
|
Split dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
142 mm (5.6 inches) |
|
Front suspension
|
Conventional telescopic fork, 46 mm diameter |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube, cast aluminum with constant-rate linkage, air adjustable |
|
Rear wheel travel
|
93 mm (3.6 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
180/60-R16 |
|
Front brakes
|
Double disc. ABS. Floating rotor with 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Hot Rod Ness billet wheels |
|
Seat
|
Leather stitched seat |
|
Physical measures and capacities |
|
Dry weight
|
394.2 kg (869.0 pounds) |
|
Power/weight ratio
|
0.2461 HP/kg |
|
Seat height
|
622 mm (24.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2664 mm (104.9 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Nuclear Sunset w/Ness Graphics |
|
Starter
|
Electric |
|
Electrical
|
12 volts / 18 amp hours battery. |
|
Comments
|
Windshield with Ness custom graphic. Kicker Premium Audio Speakers. |
