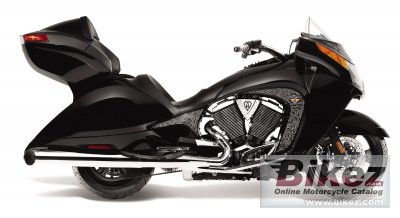

Victory Arlen Ness Vision 20112011 Victory Arlen Ness Vision specifications, pictures, reviews and rating |
| Victory's profilation of this bike |
| If you thought the Victory Vision was already the ultimate bike, check this out. The Arlen Ness Signature Series Victory Vision features the personal custom treatment of this legendary custom builder. Custom paint, graphics and Ness accessories from nose to tail, this is the ultimate. And it’s pure Arlen. |
| General information | |
|---|---|
| Model name | Victory Arlen Ness Vision |
| Year of manufacture | 2011 |
| Type | Custom / cruiser |
| Price as new | US$ 27999. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1731.0 ccm (105.63 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters |
| Output | 97.0 HP (70.8 kW)) |
| Compression | 9.4:1 |
| Bore x stroke | 101.0 x 108.0 mm (4.0 x 4.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. 45mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiplate |
| Exhaust system | Split dual exhaust with crossover |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.0° |
| Trail | 137 mm (5.4 inches) |
| Front suspension | Conventional telescopic fork, 43mm diameter |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Single, mono-tube gas,cast aluminum with rising rate linkage, preload adjustable spring |
| Rear wheel travel | 93 mm (3.6 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/60-R18 |
| Front brakes | Double disc. 300mm floating rotors with 4-piston calipers. Anti-locking brakes. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating rotor with 2-piston caliper |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 395.0 kg (870.8 pounds) |
| Power/weight ratio | 0.2456 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length | 2629 mm (103.5 inches) |
| Ground clearance | 147 mm (5.8 inches) |
| Wheelbase | 1670 mm (65.7 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Color options | Black/Ness Graphics |
| Starter | Electric |
| Electrical | Charging System: 48 amps max output. Battery: 12 volts / 18 amp hours |
