| Victory's profilation of this bike |

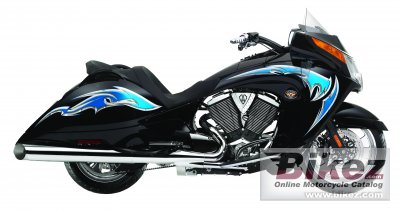

| Master custom motorcycle builder Arlen Ness has done it again in designing the breathtaking 2010 Arlen Ness Signature Victory Vision® Motorcycle. This limited-edition masterpiece comes complete with Ness custom-designed paint, a powerful 106-cubic-inch Freedom® V-Twin Engine with diamond-cut heads, Ness Signature chrome, hand-stitched leather seats, and so much more. |
|
General information |
|
Model
|
Victory Arlen Ness Victory Vision |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1731.0 ccm (105.63 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
97.0 HP (70.8 kW)) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. 45mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate |
|
Exhaust system
|
Split dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
137 mm (5.4 inches) |
|
Front suspension
|
Conventional telescopic fork, 43mm diameter |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage, preload adjustable spring |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
180/60-R18 |
|
Front brakes
|
Single disc. Floating rotor with 3-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
365.0 kg (804.7 pounds) |
|
Power/weight ratio
|
0.2658 HP/kg |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2629 mm (103.5 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1670 mm (65.7 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Ness custom |
