| Vespa's profilation of this bike |
| Limited edition models in a stunning Navy finish with a contrasting sand seat. |
| General information |
|---|

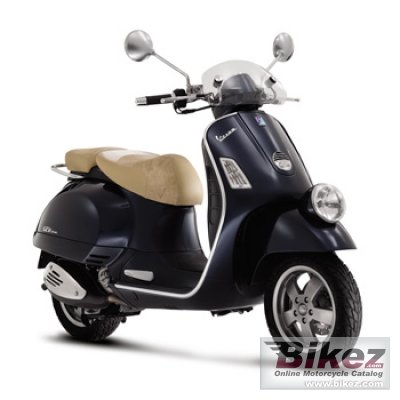

| Model: | Vespa GT Navy 125 |
| Year: | 2009 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.0 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 14.0 HP (10.2 kW)) |
| Torque: | 12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor |
| Cooling system: | Liquid |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Single leg with coil spring and double acting hydraulic shock absorber coaxial spring |
| Rear suspension: | Two double acting shock absorbers with adjustable spring preload |
| Front tyre: | 120/70-12 |
| Rear tyre: | 130/70-12 |
| Front brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 144.0 kg (317.5 pounds) |
| Power/weight ratio: | 0.0972 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1180 mm (46.5 inches) |
| Overall length: | 1940 mm (76.4 inches) |
| Overall width: | 770 mm (30.3 inches) |
| Fuel capacity: | 9.50 litres (2.51 gallons) |
| Other specifications |
|---|
| Color options: | Navy blue |
| Starter: | Electric |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 09 Vespa GT Navy 125 discussion group or the general Vespa discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
