General information |
|
Motorcycle name
|

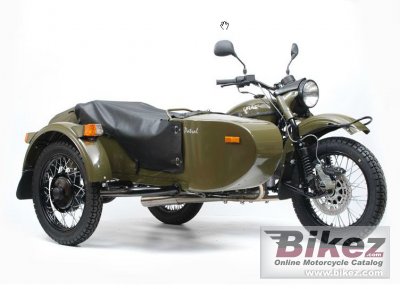

Ural Patrol T |
|
Model year
|
2012 |
|
Category
|
Classic |
| Price as new | US$ 12599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
749.0 ccm (45.70 cubic inches) |
|
Engine type
|
Two cylinder boxer, four-stroke |
|
Power output
|
40.0 HP (29.2 kW)) @ 5600 RPM |
|
Torque
|
51.5 Nm (5.3 kgf-m or 38.0 ft.lbs) @ 4000 RPM |
|
Top speed
|
104.6 km/h (65.0 mph) |
|
Compression
|
8.6:1 |
|
Bore x stroke
|
78.0 x 78.0 mm (3.1 x 3.1 inches) |
|
Fuel system
|
Carburettor. Dual Keihin L 22 AA, 32mm |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Full electronic C.D.I. |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry, dual disk |
|
Driveline
|
2WD, engagebale sidecar wheel, reverse |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double loop steel tube |
|
Front suspension
|
Leading link w/Sachs Hydraulic shock absorbers |
|
Rear suspension
|
Sachs Hydraulic shock absorbers |
|
Front tire
|
3.50-19 |
|
Rear tire
|
3.50-19 |
|
Front brakes
|
Single disc. Bremo |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Wheels
|
Front, rear, and sidecar 19ยด. Painted steel, steel spokes, cast alum. hubs |
|
Physical measures and capacities |
|
Dry weight
|
320.0 kg (705.5 pounds) |
|
Power/weight ratio
|
0.1250 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2580 mm (101.6 inches) |
|
Overall width
|
1700 mm (66.9 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Olive Drab |
|
Starter
|
Electric & kick |
|
Electrical
|
14 VDC w/22 Amp 770 Watt Alternator |
|
Factory warranty
|
2 years parts and labor, unlimited mileage |
|
Comments
|
Made by Irbit Motorcycle Works (IMZ), Irbit, 250 km east of the Ural mountains in Siberia, Russia. |
