General information |
|
Model name
|

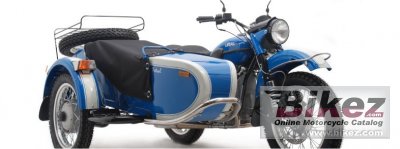

Ural Patrol 750 |
|
Year
|
2012 |
|
Category
|
Classic |
| Price as new | US$ 13199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
749.0 ccm (45.70 cubic inches) |
|
Engine type
|
Two cylinder boxer, four-stroke |
|
Power
|
40.0 HP (29.2 kW)) @ 5600 RPM |
|
Torque
|
52.0 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 4000 RPM |
|
Compression
|
8.6:1 |
|
Bore x stroke
|
78.0 x 78.0 mm (3.1 x 3.1 inches) |
|
Fuel system
|
Carburettor. Dual Keihin L 22 AA, 32mm |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry, dual disk |
|
Driveline
|
2WD/3WD, engageable sidecar drive shaft |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double loop steel tube |
|
Front suspension
|
Leading link w/Sachs Hydraulic shock absorbers |
|
Rear suspension
|
Sachs Hydraulic shock absorbers |
|
Front tire
|
3.50-19 |
|
Rear tire
|
3.50-19 |
|
Front brakes
|
Single disc. Bremo, floating disk |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Wheels
|
Front, rear, and sidecar 19in. |
|
Physical measures and capacities |
|
Dry weight
|
335.0 kg (738.5 pounds) |
|
Power/weight ratio
|
0.1194 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2580 mm (101.6 inches) |
|
Overall width
|
1700 mm (66.9 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Blue/White, Orange/Silver, Woodland Green, Black, White |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V 20 Ah batery |
|
Factory warranty
|
24 months |
|
Comments
|
Made by Irbit Motorcycle Works (IMZ), Irbit, 250 km east of the Ural mountains in Siberia, Russia. |
