| General information |
|---|

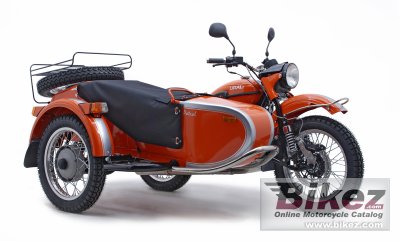

| Model: | Ural Patrol |
| Year: | 2013 |
| Category: | Classic |
| Price as new: | US$ 13699. MSRP depend on country, taxes, accessories, etc. |
| Rating: | 3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 749.0 ccm (45.70 cubic inches) |
| Engine type: | Two cylinder boxer, four-stroke |
| Power: | 40.0 HP (29.2 kW)) @ 5600 RPM |
| Torque: | 52.0 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 4000 RPM |
| Compression: | 8.6:1 |
| Bore x stroke: | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Fuel system: | Carburettor. Dual Keihin L 22 AA, 32mm |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | C.D.I. |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Dry, dual disk |
| Driveline: | 2WD/3WD, engageable sidecar drive shaft. On Demand 2WD. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double loop steel tube |
| Front suspension: | Leading link w/Sachs Hydraulic shock absorbers |
| Rear suspension: | Sachs Hydraulic shock absorbers |
| Front tyre: | 3.50-19 |
| Rear tyre: | 3.50-19 |
| Front brakes: | Single disc. Bremo, floating disk |
| Rear brakes: | Expanding brake (drum brake) |
| Wheels: | Front, rear, and sidecar 19in. |
| Physical measures and capacities |
|---|
| Dry weight: | 335.0 kg (738.5 pounds) |
| Power/weight ratio: | 0.1194 HP/kg |
| Seat height: | 813 mm (32.0 inches) If adjustable, lowest setting. |
| Overall height: | 1100 mm (43.3 inches) |
| Overall length: | 2580 mm (101.6 inches) |
| Overall width: | 1700 mm (66.9 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Other specifications |
|---|
| Color options: | Blue/White, Orange/Silver, Woodland Green |
| Starter: | Electric & kick |
| Electrical: | 12 V 20 Ah battery |
| Carrying capacity: | Trunk Volume: 2.9 cubic ft |
| Factory warranty: | 24 months |
| Comments: | Made by Irbit Motorcycle Works (IMZ), Irbit, 250 km east of the Ural mountains in Siberia, Russia. |
