| General information |
|---|

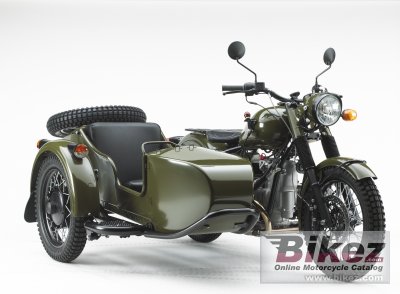

| Model: | Ural M70 Retro |
| Year: | 2013 |
| Category: | Classic |
| Price as new: | US$ 13849. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 749.0 ccm (45.70 cubic inches) |
| Engine type: | Two cylinder boxer, four-stroke |
| Power: | 40.0 HP (29.2 kW)) @ 5600 RPM |
| Torque: | 51.5 Nm (5.3 kgf-m or 38.0 ft.lbs) @ 4000 RPM |
| Top speed: | 105.0 km/h (65.2 mph) |
| Compression: | 8.6:1 |
| Bore x stroke: | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Fuel system: | Carburettor. Twin Keihin L22 AA |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | Full electronic C.D.I. |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Dry, dual disk |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double loop steel tubular frame |
| Rake (fork angle): | 30.0° |
| Front suspension: | 40mm Marzocchi telescopic forks |
| Rear suspension: | Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable |
| Front tyre: | 3.50-18 |
| Rear tyre: | 3.50-18 |
| Front brakes: | Single disc. Bremo, 4 piston with floating rotor |
| Rear brakes: | Expanding brake (drum brake). Mechanically actuated drumbrakes at rear and sidecar wheel. |
| Wheels: | Front, rear, and sidecar 18in. |
| Physical measures and capacities |
|---|
| Dry weight: | 325.0 kg (716.5 pounds) |
| Power/weight ratio: | 0.1231 HP/kg |
| Seat height: | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height: | 1020 mm (40.2 inches) |
| Overall length: | 2224 mm (87.6 inches) |
| Overall width: | 1630 mm (64.2 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Fuel capacity: | 22.00 litres (5.81 gallons) |
| Reserve fuel capacity: | 3.03 litres (0.80 gallons) |
| Other specifications |
|---|
| Color options: | Olive Drab powdercoat |
| Starter: | Electric & kick |
| Electrical: | FAYTX20HL 12V, 20Amp/h battery. |
| Carrying capacity: | Trunk Volume: 2.9 cubic ft |
| Factory warranty: | 2 years parts and labor, unlimited mileage |
