| General information |
|---|

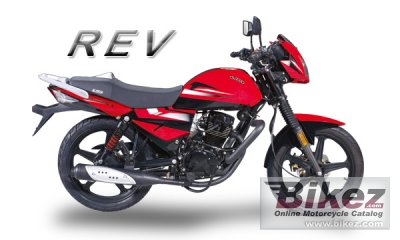

| Model | UM REV 150 |
| Year | 2010 |
| Category | Allround |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 149.5 ccm (9.12 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Telescopic Fork |
| Rear suspension | Swingarm with dual spring shock absorbers |
| Front tire | 110/70-17 |
| Rear tire | 90/90-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight | 115.0 kg (253.5 pounds) |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall length | 2030 mm (79.9 inches) |
| Overall width | 740 mm (29.1 inches) |
| Wheelbase | 1300 mm (51.2 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications |
|---|
| Color options | Black, Blue, Red, Silver |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 UM REV 150 discussion group or the general UM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
