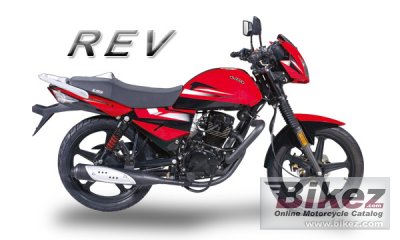

UM REV 125 20102010 UM REV 125 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | UM REV 125 |
| Year model | 2010 |
| Type | Allround |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 56.0 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic Fork |
| Rear suspension | Swingarm with dual spring shock absorbers |
| Front tire | 110/70-17 |
| Rear tire | 90/90-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 113.0 kg (249.1 pounds) |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 2030 mm (79.9 inches) |
| Overall width | 740 mm (29.1 inches) |
| Wheelbase | 1300 mm (51.2 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Black, Blue, Red, Silver |
| Starter | Electric & kick |
