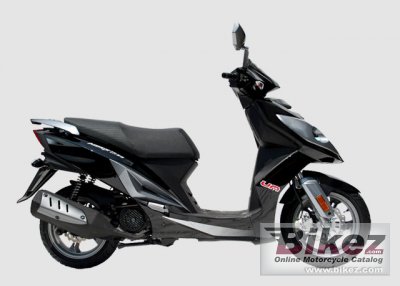

UM Matrix II-170 20092009 UM Matrix II-170 specifications, pictures, reviews and rating |
| UM's profilation of this bike |
| Sleek and sporty, it boasts a 170cc air/oil cooled engine which delivers more power and top speed yet gives you an impressive fuel efficiency of up to 95 mpg estimated. |
| General information | |
|---|---|
| Model name | UM Matrix II-170 |
| Year of manufacture | 2009 |
| Type | Scooter |
| Price as new | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 168.0 ccm (10.25 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Oil & air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Fuel consumption | 2.47 litres/100 km (40.5 km/l or 95.23 mpg) |
| Greenhouse gases | 57.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Hydraulic dual shock |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 106.6 kg (235.0 pounds) |
| Seat height | 889 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1270 mm (50.0 inches) |
| Overall length | 1880 mm (74.0 inches) |
| Overall width | 711 mm (28.0 inches) |
| Wheelbase | 1372 mm (54.0 inches) |
| Fuel capacity | 9.08 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Black, blue, red, silver |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 UM Matrix II-170 discussion group or the general UM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
