General moped information |
|
Model name
|

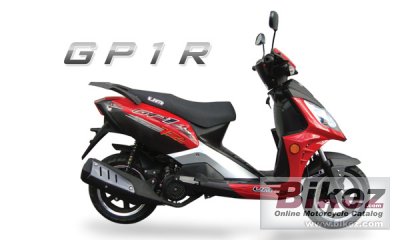

UM GP1-R 50 |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
1-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic Fork |
|
Rear suspension
|
Hydraulic Dual Shock |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
91.0 kg (200.6 pounds) |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1167 mm (45.9 inches) |
|
Overall length
|
1827 mm (71.9 inches) |
|
Overall width
|
659 mm (25.9 inches) |
|
Wheelbase
|
1243 mm (48.9 inches) |
|
Fuel capacity
|
5.60 litres (1.48 US gallons) |
|
Other specifications |
|
Color options
|
Black, Blue, Red, Silver |
|
Starter
|
Electric & kick |
