| UM's profilation of this bike |
| Turn your dreams into reality when you finally master the ´younger brother´ of the family, the DTF 50. |
|
General information |
|
Motorcycle name
|

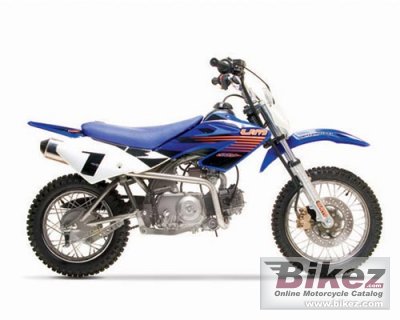

UM DTF 90 |
|
Year
|
2006 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
86.0 ccm (5.25 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
47.0 x 49.5 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Inverted telescopic fork |
|
Rear suspension
|
Single gas absorber |
|
Front brakes
|
Single disc |
|
Diameter
|
221 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
62.6 kg (138.0 pounds) |
|
Seat height
|
686 mm (27.0 inches) If adjustable, lowest setting. |
|
Overall length
|
1600 mm (63.0 inches) |
|
Wheelbase
|
1016 mm (40.0 inches) |
|
Fuel capacity
|
5.60 litres (1.48 US gallons) |
|
Reserve fuel capacity
|
1.09 litres (0.29 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
