| UM's profilation of this bike |
| Powerful 196.4cc, four stroke, single cylinder engine with balance shaft for smooth power delivery through a constant mesh, easy shifting, five speed transmission
|
|
General information |
|

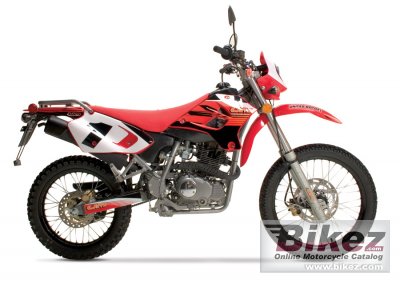

Model
|
UM DSF 200 |
|
Year of manufacture
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
196.0 ccm (11.96 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
69.0 x 53.0 mm (2.7 x 2.1 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Manual |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Single shock |
|
Front tire
|
3.0-21 |
|
Rear tire
|
4.1-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
122.9 kg (271.0 pounds) |
|
Seat height
|
889 mm (35.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1168 mm (46.0 inches) |
|
Overall length
|
2184 mm (86.0 inches) |
|
Overall width
|
991 mm (39.0 inches) |
|
Wheelbase
|
1422 mm (56.0 inches) |
|
Other specifications |
|
Starter
|
Electric & kick |
