UM DSF 159 2010

2010 UM DSF 159 specifications, pictures, reviews and rating

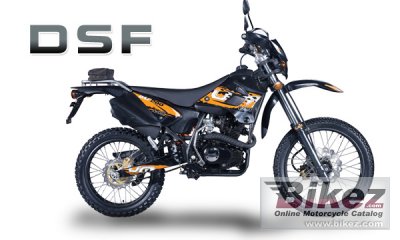

2010 UM DSF 159. Picture credits - UM. Submit more pictures.

2010 UM DSF 159

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	UM DSF 159
Year:	2010
Category:	Enduro / offroad
Rating:	Do you know this bike? Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:	149.50 ccm (9.12 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	9.2:1
Bore x stroke:	64.0 x 49.7 mm (2.5 x 2.0 inches)
Fuel system:	Carburettor. Sheng Wey Carburetor, 23mm
Ignition:	CDI
Cooling system:	Air
Gearbox:	5-speed
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic Forks
Rear suspension:	Single Shock
Front tyre:	3.00-21
Rear tyre:	4.10-18
Front brakes:	Single disc
Front brakes diameter:	292 mm (11.5 inches)
Rear brakes:	Single disc
Rear brakes diameter:	292 mm (11.5 inches)
Physical measures and capacities
Dry weight:	122.0 kg (269.0 pounds)
Weight incl. oil, gas, etc:	133.0 kg (293.2 pounds)
Seat height:	914 mm (36.0 inches) If adjustable, lowest setting.
Overall height:	721 mm (28.4 inches)
Overall length:	2,149 mm (84.6 inches)
Wheelbase:	1,461 mm (57.5 inches)
Fuel capacity:	9.75 litres (2.58 gallons)
Other specifications
Color options:	Black, Blue, Orange, Red
Starter:	Electric & kick
Comments:	Dual sport model.
