General information |
|
Model name
|

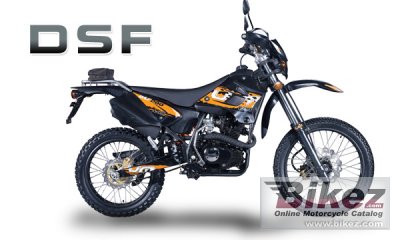

UM DSF 125 |
|
Model year
|
2010 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
56.0 x 49.7 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Sheng Wey Carburetor, 23mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic Forks |
|
Rear suspension
|
Single Shock |
|
Front tire
|
3.00-21 |
|
Rear tire
|
4.10-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
122.0 kg (269.0 pounds) |
|
Seat height
|
914 mm (36.0 inches) If adjustable, lowest setting. |
|
Overall height
|
721 mm (28.4 inches) |
|
Overall length
|
2149 mm (84.6 inches) |
|
Overall width
|
832 mm (32.8 inches) |
|
Wheelbase
|
1461 mm (57.5 inches) |
|
Fuel capacity
|
9.75 litres (2.58 US gallons) |
|
Other specifications |
|
Color options
|
Black, Blue, Orange, Red |
|
Starter
|
Electric & kick |
|
Comments
|
Dual sport model. |
