General information |
|
Model name
|

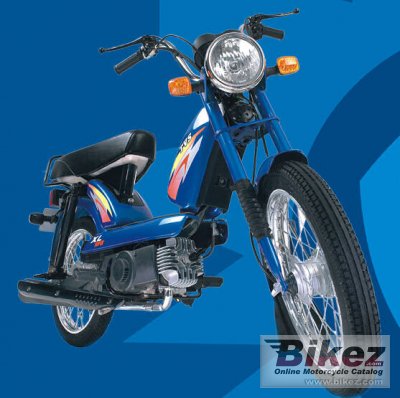

TVS XL Super HD |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
69.0 ccm (4.21 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
3.5 HP (2.6 kW)) @ 5000 RPM |
|
Torque
|
5.0 Nm (0.5 kgf-m or 3.7 ft.lbs) @ 3750 RPM |
|
Bore x stroke
|
46.0 x 42.0 mm (1.8 x 1.7 inches) |
|
Ignition
|
Fly wheel magneto 12V, 50W Electronic ignition |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Oil filled telescopic Spring assisted shocks |
|
Rear suspension
|
Adjustable hydraulic spring arm shocks |
|
Front tire
|
2.50-16 |
|
Rear tire
|
2.50-16 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
80 mm (3.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
75.0 kg (165.3 pounds) |
|
Power/weight ratio
|
0.0467 HP/kg |
|
Wheelbase
|
1222 mm (48.1 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, green, black |
|
Comments
|
An XL Super HD1 model exists with the same specs. Both are called Scooterettes. Mainly sold in India. |
