| General information |
|---|

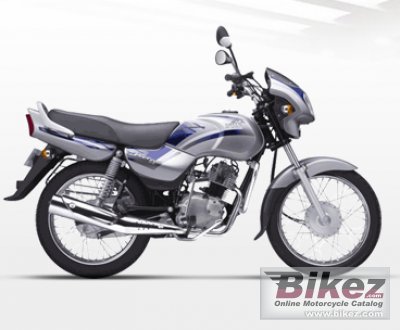

| Model: | TVS Victor GX |
| Year: | 2010 |
| Category: | Allround |
| Rating: | 72.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 109.30 ccm (6.67 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 12.07 HP (8.8 kW)) @ 7250 RPM |
| Torque: | 8.10 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 5500 RPM |
| Compression: | 9.3:1 |
| Bore x stroke: | 51.0 x 53.5 mm (2.0 x 2.1 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Digital Ignition |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Monotubular open with engine as stressed member |
| Front suspension: | Telescopic oil damped |
| Rear suspension: | 5 step hydraulic triple rated spring |
| Front tyre: | 2.75-17 |
| Rear tyre: | 3.00-17 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 130 mm (5.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 113.0 kg (249.1 pounds) |
| Overall height: | 1,145 mm (45.1 inches) |
| Overall length: | 2,015 mm (79.3 inches) |
| Overall width: | 710 mm (28.0 inches) |
| Ground clearance: | 190 mm (7.5 inches) |
| Wheelbase: | 1,200 mm (47.2 inches) |
| Fuel capacity: | 11.00 litres (2.91 gallons) |
| Reserve fuel capacity: | 3.00 litres (0.79 gallons) |
| Oil capacity: | 0.90 litres (0.06 quarts) |
| Other specifications |
|---|
| Color options: | Gray/blue |
| Starter: | Kick |
| Comments: | TVS bikes are made in India. |
