| General information |
|---|

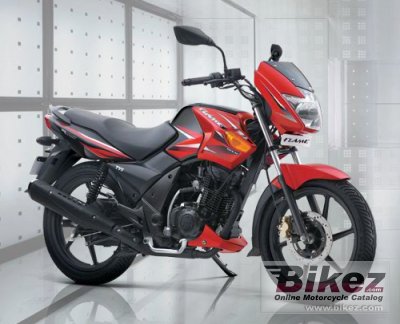

| Model: | TVS Flame DS 125 |
| Year: | 2011 |
| Category: | Allround |
| Rating: | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 124.8 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 10.3 HP (7.5 kW)) @ 7500 RPM |
| Torque: | 10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6000 RPM |
| Top speed: | 95.0 km/h (59.0 mph) |
| Compression: | 9.3:1 |
| Bore x stroke: | 54.5 x 53.5 mm (2.1 x 2.1 inches) |
| Valves per cylinder: | 3 |
| Fuel system: | Carburettor. Ucal Mikuni VM20 |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Digital Ignition |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Clutch: | Multiplate, wet |
| Driveline: | 4 gear constant mesh |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic oil damped |
| Front wheel travel: | 125 mm (4.9 inches) |
| Rear suspension: | Hydraulic, 5-step adjustable |
| Rear wheel travel: | 105 mm (4.1 inches) |
| Front tyre: | 90/90-17 |
| Rear tyre: | 100/90-17 |
| Front brakes: | Single disc |
| Diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Diameter: | 130 mm (5.1 inches) |
| Wheels: | Mag alloy |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 123.0 kg (271.2 pounds) |
| Overall height: | 1070 mm (42.1 inches) |
| Overall length: | 2030 mm (79.9 inches) |
| Overall width: | 760 mm (29.9 inches) |
| Ground clearance: | 165 mm (6.5 inches) |
| Wheelbase: | 1260 mm (49.6 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Other specifications |
|---|
| Color options: | Red/black/silver/orange |
| Starter: | Electric & kick |
| Electrical: | 12 Volt 5 Ah battery |
| Comments: | Sold in India. |
