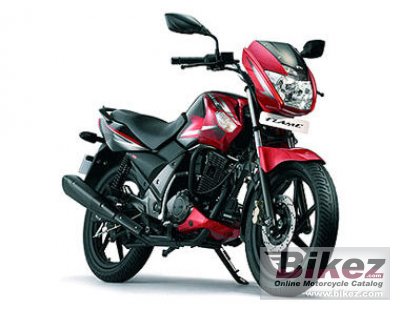

General information |
|
Model name
|
TVS Flame DS 125 |
|
Year model
|
2010 |
|
Type
|
Allround |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
10.3 HP (7.5 kW)) @ 7500 RPM |
|
Torque
|
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6000 RPM |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
54.5 x 53.5 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor. Ucal Mikuni |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Digital Ignition |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate, wet |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic oil damped |
|
Front wheel travel
|
125 mm (4.9 inches) |
|
Rear suspension
|
Hydraulic, 5-step adjustable |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
90/90-17 |
|
Rear tire
|
100/90-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
109.0 kg (240.3 pounds) |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1260 mm (49.6 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Color options
|
Red/black/silver/orange |
|
Starter
|
Electric & kick |
|
Comments
|
TVS bikes are made in India. |
