General information |
|
Model name
|

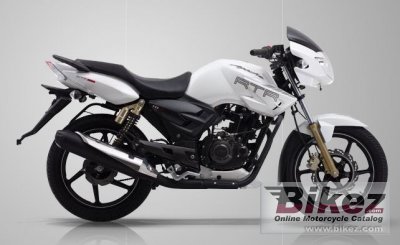

TVS Apache RTR 180 |
|
Year model
|
2010 |
|
Type
|
Sport |
|
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
177.4 ccm (10.82 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
16.8 HP (12.3 kW)) @ 8500 RPM |
|
Torque
|
15.5 Nm (1.6 kgf-m or 11.4 ft.lbs) @ 6500 RPM |
|
Top speed
|
124.0 km/h (77.1 mph) |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
62.5 x 57.8 mm (2.5 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni BS29 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
IDI-Dual mode digital ignition |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
105 mm (4.1 inches) |
|
Rear suspension
|
Monotube inverted Gas filled Shox (MIG) |
|
Front tire
|
90/90-17 |
|
Rear tire
|
100/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
137.0 kg (302.0 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2085 mm (82.1 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Wheelbase
|
1326 mm (52.2 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
TVS is made in India in cooperation with Suzuki. |
