General information |
|
Model name
|

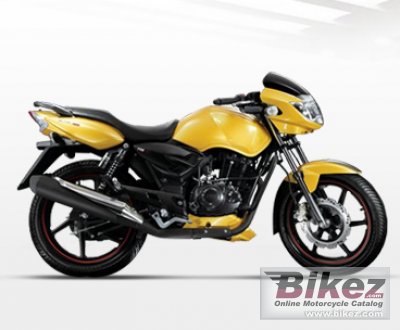

TVS Apache RTR 160 |
|
Year of manufacture
|
2011 |
|
Type
|
Sport |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
159.7 ccm (9.74 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
15.0 HP (11.0 kW)) @ 8500 RPM |
|
Torque
|
13.1 Nm (1.3 kgf-m or 9.7 ft.lbs) @ 6000 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
62.0 x 52.9 mm (2.4 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni BS-26 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
IDI-Dual mode digital ignition |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, Multi-Plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
105 mm (4.1 inches) |
|
Rear suspension
|
Monotube inverted gas filled Shochs |
|
Front tire
|
90/90-17 |
|
Rear tire
|
100/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Wheels
|
Six spoke black rims |
|
Physical measures and capacities |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1050 mm (41.3 inches) |
|
Overall length
|
2020 mm (79.5 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Ground clearance
|
180 mm (7.1 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
1.70 litres (0.45 US gallons) |
|
Other specifications |
|
Color options
|
Yellow/black |
|
Starter
|
Electric & kick |
|
Light
|
35/35W Halogen HS1, Clear lens with MFR |
|
Comments
|
Made in India. |
