General information |
|
Motorcycle name
|

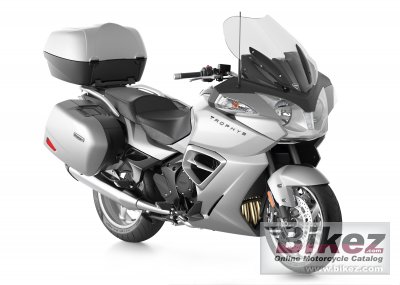

Triumph Trophy SE |
|
Year
|
2013 |
|
Category
|
Touring |
| Price as new | US$ 18999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1215.0 ccm (74.14 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power
|
134.0 HP (97.8 kW)) @ 8900 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 6450 RPM |
|
Bore x stroke
|
85.0 x 71.4 mm (3.3 x 2.8 inches) |
|
Fuel system
|
Injection. Ride by wire. fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Exhaust system
|
Stainless steel 3 into 1. side mounted stainless steel silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium beam twin-spar |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP 43mm upside down forks, electronically adjustable rebound damping (sport/normal/comfort) with 127mm travel. |
|
Rear suspension
|
WP monoshock with integral oil reservoir, electronically adjustable hydraulic preload (1up, 1up+luggage, 2up), electronically adjustable rebound damping (sport, normal, comfort), 120mm rear wheel travel. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Floating discs, Nissin 4-piston calipers, linked brakes (front brakes partially activated by rear), ABS (non-switchable) |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Nissin 2-piston sliding caliper, ABS (non-switchable) |
|
Diameter
|
282 mm (11.1 inches) |
|
Wheels
|
Cast aluminium 5-spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
301.0 kg (663.6 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1435 mm (56.5 inches) |
|
Overall length
|
2235 mm (88.0 inches) |
|
Overall width
|
975 mm (38.4 inches) |
|
Wheelbase
|
1542 mm (60.7 inches) |
|
Fuel capacity
|
26.00 litres (6.87 US gallons) |
|
Oil capacity
|
4.00 litres (4.23 US quarts) |
|
Other specifications |
|
Color options
|
White, blue |
|
Starter
|
Electric |
|
Instruments
|
Dual analogue gauges and trip computers, range to empty indication, service indicator, gear position indication, air temperature, frost warning, accessory heated seats/grips status display, cruise control |
|
Carrying capacity
|
Saddle bags |
|
Factory warranty
|
2 year warranty unlimited mileage |
