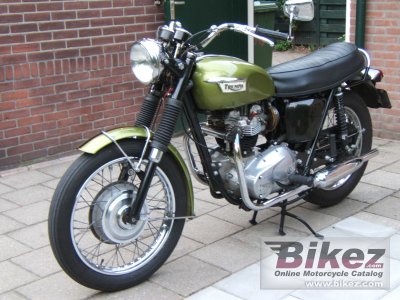

Triumph Trophy 650 19701970 Triumph Trophy 650 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Triumph Trophy 650 |
| Model year | 1970 |
| Category | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 649.0 ccm (39.60 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 45.0 HP (32.8 kW)) @ 6500 RPM |
| Top speed | 170.0 km/h (105.6 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 71.0 x 82.0 mm (2.8 x 3.2 inches) |
| Valves per cylinder | 2 |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.25-19 |
| Rear tire | 4.00-18 |
| Front brakes | Expanding brake |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 196.0 kg (432.1 pounds) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 70 Triumph Trophy 650 discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 1970 Triumph Trophy 650 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Triumph bike | |
Reliability for the 1970 Triumph Trophy 650:  (73.4 out of 100)Click here for complete rating. |
|
