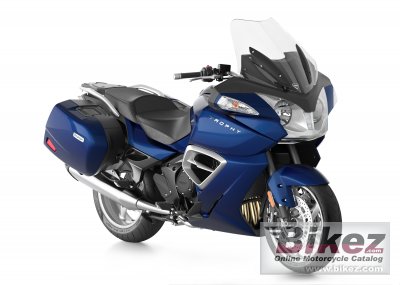

Triumph Trophy 20132013 Triumph Trophy specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Designed with obsessive attention to detail, the 1215cc 3-cylinder shaft drive Trophy gives you the torque, performance and handling for a sublime riding experience. |
| General information | |
|---|---|
| Motorcycle name | Triumph Trophy |
| Year model | 2013 |
| Type | Touring |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1215.0 ccm (74.14 cubic inches) |
| Type of engine | In-line three, four-stroke |
| Effect | 134.0 HP (97.8 kW)) @ 8900 RPM |
| Torque | 120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 6450 RPM |
| Bore x stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Fuel system | Injection. Ride by wire. fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet. multi-plate |
| Exhaust system | Stainless steel 3 into 1. side mounted stainless steel silencer |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium beam twin-spar |
| Rake (fork angle) | 27.0° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP 43mm upside down forks, electronically adjustable rebound damping (sport/normal/comfort) with 127mm travel. |
| Rear suspension | WP monoshock with integral oil reservoir, electronically adjustable hydraulic preload (1up, 1up+luggage, 2up), electronically adjustable rebound damping (sport, normal, comfort), 120mm rear wheel travel. |
| Front tire | 120/70-17 |
| Rear tire | 190/55-17 |
| Front brakes | Double disc. Floating discs, Nissin 4-piston calipers, ABS (non-switchable) |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Nissin 2-piston sliding caliper, ABS (non-switchable) |
| Diameter | 282 mm (11.1 inches) |
| Wheels | Cast aluminium 5-spoke |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 301.0 kg (663.6 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1435 mm (56.5 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 975 mm (38.4 inches) |
| Wheelbase | 1542 mm (60.7 inches) |
| Fuel capacity | 26.00 litres (6.87 US gallons) |
| Oil capacity | 4.00 litres (4.23 US quarts) |
| Other specifications | |
| Color options | Silver, blue |
| Starter | Electric |
| Instruments | Dual analogue gauges and trip computers, range to empty indication, service indicator, gear position indication, air temperature, frost warning |
| Carrying capacity | Saddle bags |
| Factory warranty | 2 year warranty unlimited mileage |
| Comments | Linked brakes - front brakes partially activated by rear. |
