General information |
|
Motorcycle name
|

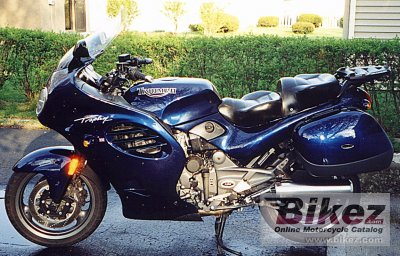

Triumph Trophy 1200 |
|
Year
|
1997 |
|
Category
|
Touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1180.0 ccm (72.00 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
108.0 HP (78.8 kW)) |
|
Torque
|
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) |
|
Top speed
|
225.0 km/h (139.8 mph) |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
76.0 x 65.0 mm (3.0 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 36 mm Flat side CV carburetors |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital Inductive type |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
105 mm (4.1 inches) |
|
Front suspension
|
43mm Forks with triple rate springs adjustable for compression, rebound damping and spring preload |
|
Rear suspension
|
Monoshock with adjustable preload and rebound damping |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
170/60-ZR17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Power/weight ratio
|
0.4596 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2152 mm (84.7 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
3,3 LITER 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Spark plugs
|
NGK, DPR8EA-9 |
|
Idle speed
|
1000 +/- 50 RPM |
|
Chain links
|
112 |
|
Sprockets
|
18/45 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
