General information |
|
Model name
|

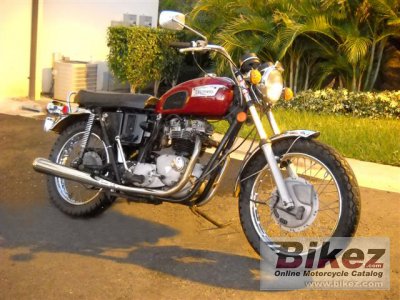

Triumph TR 6 R Tiger 650 |
|
Year
|
1971 |
|
Category
|
Touring |
|
Rating
|
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
649.0 ccm (39.60 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
48.0 HP (35.0 kW)) @ 7250 RPM |
|
Torque
|
50.1 Nm (5.1 kgf-m or 37.0 ft.lbs) |
|
Top speed
|
167.0 km/h (103.8 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
71.0 x 82.0 mm (2.8 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
12V Battery and coil, Lucas |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork, 2-way hydraulic damping |
|
Rear suspension
|
Swingarm, dual shocks, hydraulically damped, adjustable preload |
|
Front tire
|
3.25-19 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
175.0 kg (385.8 pounds) |
|
Weight incl. oil, gas, etc
|
191.0 kg (421.1 pounds) |
|
Power/weight ratio
|
0.2743 HP/kg |
|
Overall height
|
790 mm (31.1 inches) |
|
Overall length
|
2220 mm (87.4 inches) |
|
Ground clearance
|
178 mm (7.0 inches) |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
13.25 litres (3.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Optional 5-speed transmission. |
