General information |
|
Model name
|

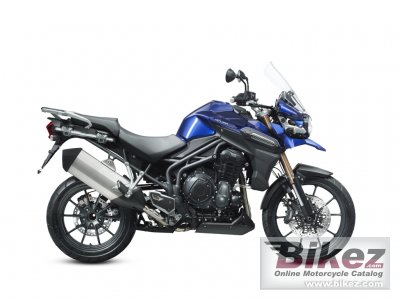

Triumph Tiger Explorer |
|
Model year
|
2013 |
|
Category
|
Allround |
| Price as new | US$ 15699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1215.0 ccm (74.14 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power output
|
137.0 HP (100.0 kW)) @ 9300 RPM |
|
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM |
|
Bore x stroke
|
85.0 x 71.4 mm (3.3 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Drive by wire. fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Fuel consumption
|
4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
|
Greenhouse gases
|
113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Stainless steel 3 into 1 . side mounted stainless steel silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis frame |
|
Rake (fork angle)
|
23.9° |
|
Front suspension
|
KYB 46mm upside down forks, 190mm travel |
|
Rear suspension
|
KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel |
|
Front tire
|
110/80-18 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Double disc. Floating discs, Nissin 4-piston calipers, Switchable ABS |
|
Rear brakes
|
Single disc. Nissin 2-piston sliding caliper, Switchable ABS |
|
Wheels
|
Cast aluminium alloy 10-spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
259.0 kg (571.0 pounds) |
|
Seat height
|
837 mm (33.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1410 mm (55.5 inches) |
|
Overall length
|
2248 mm (88.5 inches) |
|
Overall width
|
885 mm (34.8 inches) |
|
Wheelbase
|
1530 mm (60.2 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Oil capacity
|
4.00 litres (4.23 US quarts) |
|
Other specifications |
|
Color options
|
Black, blue |
|
Starter
|
Electric |
|
Instruments
|
LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
