General information |
|
Model name
|

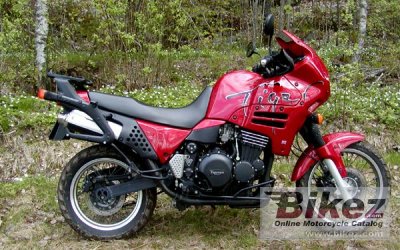

Triumph Tiger 900 |
|
Year of manufacture
|
1998 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
885.0 ccm (54.00 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Output
|
84.0 HP (61.3 kW)) @ 8400 RPM |
|
Torque
|
80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 5500 RPM |
|
Top speed
|
201.0 km/h (124.9 mph) |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
76.0 x 65.0 mm (3.0 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 3 x 36mm flat side CV |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Fuel consumption
|
6.20 litres/100 km (16.1 km/l or 37.94 mpg) |
|
Greenhouse gases
|
143.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
3-into-2 exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Trellis, steel |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
43 mm Kayaba telescopic fork, adjustable for compression and rebound damping |
|
Front wheel travel
|
235 mm (9.3 inches) |
|
Rear suspension
|
Kayaba monoshock, adjustable preload |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
100/80-19 |
|
Rear tire
|
140/80-17 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
209.0 kg (460.8 pounds) |
|
Power/weight ratio
|
0.4019 HP/kg |
|
Seat height
|
851 mm (33.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1560 mm (61.4 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Red, green, yellow, black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 or 15W-40 |
|
Oil filter
|
K&N KN-19 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Battery
|
YUASA YB14LA-2 |
|
Spark plugs
|
NGK DPR8EA-9, NGK DPR8EIX-9 |
|
Idle speed
|
1000 RPM |
|
Chain size
|
530 |
|
Chain links
|
114 |
|
Sprockets
|
18/48 (front/rear) |
|
Tire pressure front
|
30 PSI (2.1 Bar or 210 kPa) |
|
Tire pressure rear
|
33 PSI (2.3 Bar or 230 kPa) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
