General information |
|
Model
|

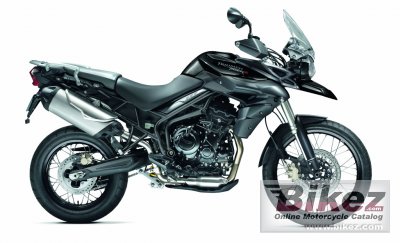

Triumph Tiger 800 XC |
|
Year of manufacture
|
2013 |
|
Type
|
Super motard |
|
Rating
|
4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
799.0 ccm (48.75 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Output
|
95.0 HP (69.3 kW)) @ 9300 RPM |
|
Torque
|
79.0 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850 RPM |
|
Bore x stroke
|
74.0 x 61.9 mm (2.9 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
O ring chain |
|
Fuel consumption
|
5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
|
Greenhouse gases
|
133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Stainless steel 3 into 1. high level stainless steel silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis frame |
|
Rake (fork angle)
|
24.3° |
|
Front suspension
|
Showa 43mm upside down forks, 180mm travel |
|
Rear suspension
|
Showa monoshock with hydraulically adjustable preload, 170mm rear wheel travel |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Double disc. Floating discs, Nissin 2-piston sliding calipers, Switchable ABS. |
|
Diameter
|
308 mm (12.1 inches) |
|
Rear brakes
|
Single disc. Nissin single piston sliding caliper, Switchable ABS. |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
215.0 kg (474.0 pounds) |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1390 mm (54.7 inches) |
|
Overall length
|
2215 mm (87.2 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Wheelbase
|
1545 mm (60.8 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Black, white, blue |
|
Starter
|
Electric |
|
Instruments
|
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock |
|
Carrying capacity
|
Top box, saddle bags |
|
Comments
|
Windscreen |
