General information |
|
Model
|

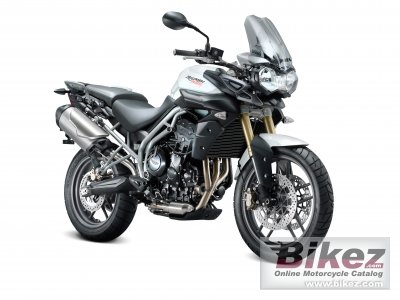

Triumph Tiger 800 |
|
Year model
|
2011 |
|
Type
|
Allround |
|
Rating
|
3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
799.0 ccm (48.75 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Effect
|
94.0 HP (68.6 kW)) @ 9300 RPM |
|
Torque
|
79.0 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
74.0 x 61.9 mm (2.9 x 2.4 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital-inductive type via engine management system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
X ring chain. Primary drive: Gear. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis frame. Twin-sided, cast aluminium alloy swing arm. |
|
Rake (fork angle)
|
23.1° |
|
Front suspension
|
Showa 45mm upside down forks. 220mm travel |
|
Rear suspension
|
Showa monoshock with remote oil reservoir. hydraulically adjustable preload. rebound damping adjustment. 215mm rear wheel travel |
|
Front tire
|
90/90-ZR21 |
|
Rear tire
|
150/70-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
308 mm (12.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Wheels
|
Cast aluminium alloy 10-spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
214.6 kg (473.0 pounds) |
|
Seat height
|
843 mm (33.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1349 mm (53.1 inches) |
|
Overall length
|
2212 mm (87.1 inches) |
|
Overall width
|
864 mm (34.0 inches) |
|
Wheelbase
|
1567 mm (61.7 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Yellow, white, black |
|
Starter
|
Electric |
|
Instruments
|
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, TPMS ready, Switchable ABS |
