| Triumph's profilation of this bike |
| Usability has always been a key benefit of all Triumph motorcycles and the Tiger retains this no matter what type of journey. There´s no journey too demanding.
|
|
General information |
|
Motorcycle name
|

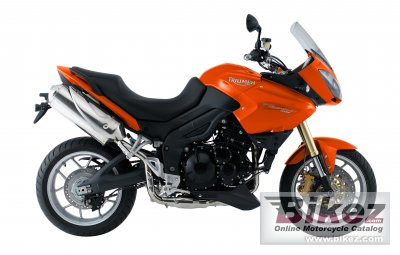

Triumph Tiger |
|
Model year
|
2009 |
|
Category
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1050.0 ccm (64.07 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power output
|
114.0 HP (83.2 kW)) @ 9400 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6250 RPM |
|
Bore x stroke
|
79.0 x 71.4 mm (3.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
--) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium beam twin spar |
|
Rake (fork angle)
|
23.2° |
|
Front suspension
|
Showa 43mm upside down forks with adjustable preload. rebound and compression damping. 150mm travel |
|
Rear suspension
|
Showa Monoshock with adjustable preload and rebound damping 150mm rear wheel travel |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.5757 HP/kg |
|
Seat height
|
835 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1320 mm (52.0 inches) |
|
Overall length
|
2110 mm (83.1 inches) |
|
Overall width
|
840 mm (33.1 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
Jet Black. Fusion White. Blazing Orange |
|
Starter
|
Electric |
|
Comments
|
Optional ABS brakes |
