General information |
|
Model
|

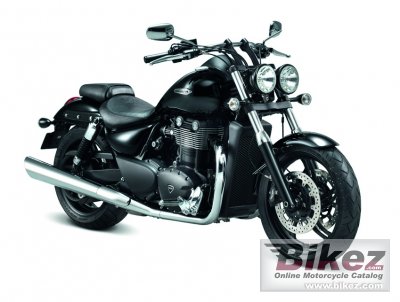

Triumph Thunderbird Storm |
|
Year of manufacture
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1597.0 ccm (97.45 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
270º firing interval |
|
Output
|
86.0 HP (62.8 kW)) @ 4850 RPM |
|
Torque
|
146.0 Nm (14.9 kgf-m or 107.7 ft.lbs) @ 2750 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
103.8 x 103.8 mm (4.1 x 4.1 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital-inductive type via engine management system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
Toothed Belt |
|
Fuel consumption
|
7.13 litres/100 km (14.0 km/l or 32.99 mpg) |
|
Greenhouse gases
|
165.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chromed twin-skin stainless steel 2 into 1 into 2. tandem large-volume catalysts in centralized catbox. chrome-plated exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular Steel. twin spine |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
151 mm (5.9 inches) |
|
Front suspension
|
Showa 47mm forks. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Showa chromed spring twin shocks with 5 position adjustable preload. |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
120/70-R19 |
|
Rear tire
|
200/50-R17 |
|
Front brakes
|
Double disc. Nissin 4-piston fixed calipers. ABS. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Brembo 2-piston floating caliper. ABS |
|
Diameter
|
310 mm (12.2 inches) |
|
Wheels
|
Cast aluminum alloy 5-spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
339.0 kg (747.4 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2340 mm (92.1 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Wheelbase
|
1615 mm (63.6 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Oil capacity
|
4.20 litres (4.44 US quarts) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Instruments
|
Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock |
|
Factory warranty
|
24 months unlimited mileage |
