| General information |
|---|

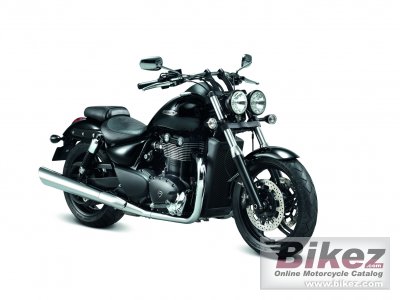

| Model: | Triumph Thunderbird Storm |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Price as new: | US$ 14799. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1699.0 ccm (103.67 cubic inches) |
| Engine type: | Twin, four-stroke |
| Engine details: | 270 degree firing interval |
| Power: | 98.0 HP (71.5 kW)) @ 5200 RPM |
| Torque: | 156.0 Nm (15.9 kgf-m or 115.1 ft.lbs) @ 2950 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 107.1 x 107.1 mm (4.2 x 4.2 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet. multi-plate |
| Driveline: | Toothed Belt |
| Fuel consumption: | 6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
| Greenhouse gases: | 143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chromed twin-skin stainless steel 2 into 1 into 2. tandem large-volume catalysts in centralized catbox. chrome-plated exhaust |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular Steel. twin spine |
| Rake (fork angle): | 32.0° |
| Trail: | 151 mm (5.9 inches) |
| Front suspension: | Showa 47mm forks. 120mm travel |
| Rear suspension: | Showa chromed spring twin shocks with 5 position adjustable preload. 95mm rear wheel travel |
| Front tyre: | 120/70-R19 |
| Rear tyre: | 200/50-R17 |
| Front brakes: | Double disc |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 310 mm (12.2 inches) |
| Wheels: | Cast aluminum alloy 5-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 339.0 kg (747.4 pounds) |
| Seat height: | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height: | 1120 mm (44.1 inches) |
| Overall length: | 2340 mm (92.1 inches) |
| Overall width: | 880 mm (34.6 inches) |
| Wheelbase: | 1615 mm (63.6 inches) |
| Fuel capacity: | 22.00 litres (5.81 gallons) |
| Oil capacity: | 4.20 litres (0.28 quarts) |
| Other specifications |
|---|
| Color options: | Jet Black. Matte Black |
| Starter: | Electric |
| Instruments: | Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock |
| Factory warranty: | 2 years unlimited milage |
