| Triumph's profilation of this bike |
| New for 2011, meet the Thunderbird’s punky cousin. Dechromed. Stripped down. More attitude than before. Distinctive twin headlights. Straight bars. Any colour you like, as long as it’s black. |
|
General information |
|
Model
|

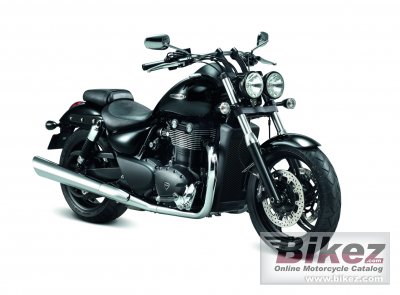

Triumph Thunderbird Storm |
|
Model year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1699.0 ccm (103.67 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Engine details
|
270 degree firing interval |
|
Power output
|
97.0 HP (70.8 kW)) @ 5200 RPM |
|
Torque
|
155.9 Nm (15.9 kgf-m or 115.0 ft.lbs) @ 2950 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
103.8 x 94.3 mm (4.1 x 3.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital-inductive type via engine management system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
Toothed belt. Primary drive: Gear. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel. twin spine. Swing arm: Engine. |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
151 mm (5.9 inches) |
|
Front suspension
|
Showa 47mm forks. 120mm travel |
|
Rear suspension
|
Showa chromed spring twin shocks with 5 position adjustable preload. 95mm rear wheel travel |
|
Front tire
|
120/70-R19 |
|
Rear tire
|
200/50-R17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
338.4 kg (746.0 pounds) |
|
Seat height
|
699 mm (27.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2339 mm (92.1 inches) |
|
Overall width
|
879 mm (34.6 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
21.95 litres (5.80 US gallons) |
|
Other specifications |
|
Color options
|
Jet Black |
|
Starter
|
Electric |
|
Comments
|
Also called Thunderbird Storm. |
