General information |
|
Model
|

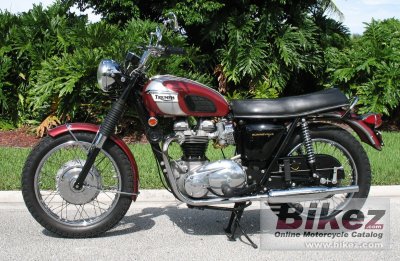

Triumph T 120 R Bonneville 650 |
|
Year of manufacture
|
1970 |
|
Type
|
Classic |
|
Rating
|
3.7 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
649.0 ccm (39.60 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
49.0 HP (35.8 kW)) @ 7200 RPM |
|
Top speed
|
176.0 km/h (109.4 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
71.0 x 82.0 mm (2.8 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
3.25-19 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Expanding brake |
|
Rear brakes
|
Expanding brake |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
192.0 kg (423.3 pounds) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 70 Triumph T 120 R Bonneville 650 discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Fun-factor for the 1970 Triumph T 120 R Bonneville 650:
 (94.1 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
