General information |
|
Model
|

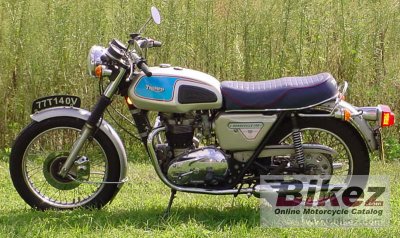

Triumph T140 V Bonneville SIlver Jubilee |
|
Model year
|
1977 |
|
Category
|
Classic |
|
Rating
|
3.7 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
750.0 ccm (45.77 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
45.0 HP (32.8 kW)) |
|
Top speed
|
177.0 km/h (110.0 mph) |
|
1/4 mile (0.4 km)
|
13.70 seconds |
|
Max RPM
|
7200 |
|
Compression
|
7.9:1 |
|
Bore x stroke
|
76.0 x 82.0 mm (3.0 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Twin 30mm Amal Concentric |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Twin Coil and Points |
|
Lubrication system
|
Dry Sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate |
|
Fuel consumption
|
4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
|
Greenhouse gases
|
109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Twin downswept with balance pipe, Dual silencers. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin Downtube Cradle. Oil in frame. |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
113 mm (4.4 inches) |
|
Front suspension
|
Telescopic slider type |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Twin Girling Shocks on Swinging Arm |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
3.25-19 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Single disc. Twin piston caliper, Hard chromed cast iron disk |
|
Diameter
|
254 mm (10.0 inches) |
|
Rear brakes
|
Single disc. Twin piston caliper, Hard chromed cast iron disk |
|
Diameter
|
254 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
179.2 kg (395.0 pounds) |
|
Weight incl. oil, gas, etc
|
190.5 kg (420.0 pounds) |
|
Power/weight ratio
|
0.2512 HP/kg |
|
Seat height
|
787 mm (31.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2223 mm (87.5 inches) |
|
Overall width
|
838 mm (33.0 inches) |
|
Wheelbase
|
1422 mm (56.0 inches) |
|
Fuel capacity
|
10.59 litres (2.80 US gallons) |
|
Oil capacity
|
2.20 litres (2.32 US quarts) |
|
Other specifications |
|
Color options
|
Silver With Red and Blue pinstriping. |
|
Starter
|
Kick |
|
Comments
|
I believe there was a USA and a Eureopean variant of this bike. The difference being: USA 2.8 gallon tank and high handlebars. Eureopean version had 4gall tank and low bars. |
|
Modifications compared to previous model
|
Differed froom standard Bonneville of the day in that it was a certified limited edition with custom paintwork and decals. Red and Blue pinstripes on both rims, tank and side covers and Chromed Engine Covers. |
