| General information |
|---|

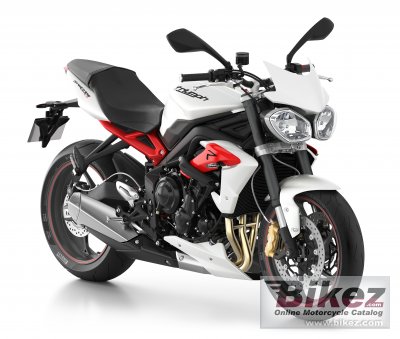

| Model: | Triumph Street Triple R |
| Year: | 2013 |
| Category: | Naked bike |
| Price as new: | US$ 9999. MSRP depend on country, taxes, accessories, etc. |
| Rating: | 4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 675.0 ccm (41.19 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 106.0 HP (77.4 kW)) @ 11700 RPM |
| Torque: | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 9200 RPM |
| Compression: | 12.7:1 |
| Bore x stroke: | 74.0 x 74.0 mm (2.9 x 2.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Exhaust system: | Stainless steel 3 into 1 into 2 exhaust system with twin high level polished stainless steel silencers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Front - Aluminium beam twin spar. Rear - 2 piece high pressure die cast. |
| Rake (fork angle): | 23.4° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | KYB 41mm upside down forks with adjustable preload, rebound and compression damping, 115mm travel |
| Rear suspension: | KYB monoshock with piggy back reservoir adjustable for rebound and compression damping, 135mm rear wheel travel |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-ZR17 |
| Front brakes: | Double disc. Nissin 2-piston sliding calipers. Switchable ABS. |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc. Brembo single piston caliper. Switchable ABS. |
| Diameter: | 220 mm (8.7 inches) |
| Wheels: | Cast aluminium alloy 5-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 183.0 kg (403.4 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1110 mm (43.7 inches) |
| Overall length: | 2055 mm (80.9 inches) |
| Overall width: | 740 mm (29.1 inches) |
| Wheelbase: | 1410 mm (55.5 inches) |
| Fuel capacity: | 17.40 litres (4.60 gallons) |
| Oil capacity: | 3.50 litres (0.23 quarts) |
| Other specifications |
|---|
| Color options: | Black/red, Grey/red, White/red |
| Starter: | Electric |
| Instruments: | LCD multi-functional instrument pack with digital speedometer, fuel gauge, trip computer, analogue tachometer, lap timer, gear position indicator, programmable gear change lights, clock, TPMS ready and switchable ABS. |
| Factory warranty: | 24 months unlimited mileage |
