| Triumph's profilation of this bike |

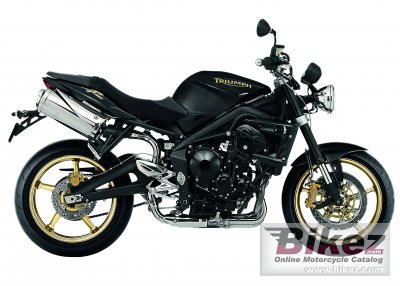

| Street Triple R. It’s a Street Triple with attitude. The most fun you can have on two wheels.
Take a standard Street Triple and add supersport specification suspension and brakes. Mix in some premium colour schemes and take the skills and experience of Triumph’s outstanding development engineers to hone to perfection. |
|
General information |
|
Model
|
Triumph Street Triple R |
|
Year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
675.0 ccm (41.19 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power
|
106.0 HP (77.4 kW)) @ 11700 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 9100 RPM |
|
Compression
|
12.7:1 |
|
Bore x stroke
|
74.0 x 52.3 mm (2.9 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium beam twin spar |
|
Rake (fork angle)
|
23.9° |
|
Front suspension
|
Kayaba 41mm upside down forks, with adjustable preload, rebound and compression damping |
|
Rear suspension
|
Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
308 mm (12.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
167.0 kg (368.2 pounds) |
|
Weight incl. oil, gas, etc
|
189.0 kg (416.7 pounds) |
|
Power/weight ratio
|
0.6347 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Overall width
|
755 mm (29.7 inches) |
|
Wheelbase
|
1385 mm (54.5 inches) |
|
Fuel capacity
|
17.40 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Matt Graphite, Matt Blazing Orange |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Triumph Street Triple R discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Reliability for the 2010 Triumph Street Triple R:
 (89.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
