| Triumph's profilation of this bike |
| A fusion of the style and attitude of the iconic Speed Triple with the performance and agility of the award winning Daytona 675 created a truly impressive mid-weight streetfighter and a stunning looking contender that punches well above its weight on the road or track. |
| General information |
|---|

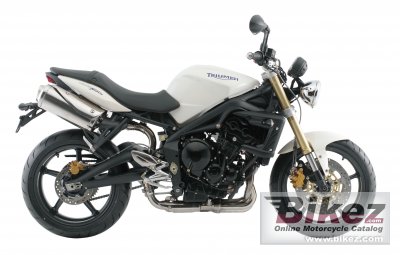

| Model: | Triumph Street Triple |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | 74.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 675.00 ccm (41.19 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 105.94 HP (77.3 kW)) @ 11700 RPM |
| Torque: | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 9100 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 74.0 x 52.3 mm (2.9 x 2.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | --) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium beam twin spar |
| Rake (fork angle): | 24.3° |
| Trail: | 95 mm (3.8 inches) |
| Front suspension: | 41mm upside down forks. 120mm travel |
| Rear suspension: | Monoshock with adjustable preload 126mm rear wheel travel |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 308 mm (12.1 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 167.0 kg (368.2 pounds) |
| Power/weight ratio: | 0.6344 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,250 mm (49.2 inches) |
| Overall length: | 2,030 mm (79.9 inches) |
| Overall width: | 736 mm (29.0 inches) |
| Wheelbase: | 1,395 mm (54.9 inches) |
| Fuel capacity: | 17.40 litres (4.60 gallons) |
| Other specifications |
|---|
| Color options: | Fusion White. Jet Black. Roulette Green |
| Starter: | Electric |
