Triumph Sprint ST 20092009 Triumph Sprint ST specifications, pictures, reviews and rating |

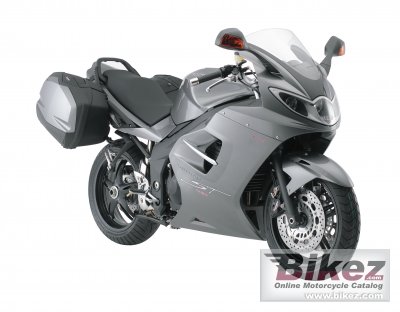

2009 Triumph Sprint ST. Image credits - Triumph.
| Triumph's profilation of this bike |
| Mile eating capabilities are equally well catered for. Aerodynamic full fairing, ergonomic seat design, colour matched, waterproof hard case panniers as standard, fuel gauge, 20 litre tank, trip computer and optional ABS all contribute to a practicality and versatility that few rivals can keep up with. |
| General information | |
|---|---|
| Model | Triumph Sprint ST |
| Year of manufacture | 2009 |
| Type | Touring |
| Rating | 3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1050.0 ccm (64.07 cubic inches) |
| Type of engine | In-line three, four-stroke |
| Output | 124.7 HP (91.0 kW)) @ 9250 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 7500 RPM |
| Bore x stroke | 79.0 x 71.4 mm (3.1 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Multipoint sequential electronic fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium beam perimeter |
| Rake (fork angle) | 24.0° |
| Front suspension | Showa 43mm cartridge forks with dual rate springs and adjustable preload 127mm travel |
| Rear suspension | Showa Monoshock with adjustable preload and rebound damping. 119mm travel |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.5939 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1215 mm (47.8 inches) |
| Overall length | 2114 mm (83.2 inches) |
| Overall width | 750 mm (29.5 inches) |
| Wheelbase | 1457 mm (57.4 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Color options | Graphite. Pacific Blue. Phantom Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Triumph Sprint ST discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
