General information |
|
Model name
|

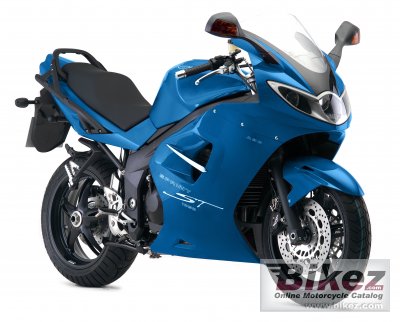

Triumph Sprint ST |
|
Model year
|
2007 |
|
Category
|
Sport |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1050.0 ccm (64.07 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power output
|
125.0 HP (91.2 kW)) @ 9250 RPM |
|
Torque
|
77.0 Nm (7.9 kgf-m or 56.8 ft.lbs) @ 7500 RPM |
|
Top speed
|
230.1 km/h (143.0 mph) |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
79.0 x 71.4 mm (3.1 x 2.8 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital - inductive type - via electronic engine managment system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Fuel consumption
|
6.80 litres/100 km (14.7 km/l or 34.59 mpg) |
|
Greenhouse gases
|
157.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum beam perimeter |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
43mm cartridge forks with dual rate springs and adjustable preload |
|
Rear suspension
|
Monoshock with adjustable preload and rebound and compression damping |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. ABS. Floating discs. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS. Two-piston calipers. |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
209.6 kg (462.0 pounds) |
|
Power/weight ratio
|
0.5965 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1215 mm (47.8 inches) |
|
Overall length
|
2114 mm (83.2 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Wheelbase
|
1457 mm (57.4 inches) |
|
Fuel capacity
|
19.68 litres (5.20 US gallons) |
|
Oil capacity
|
3.20 litres (3.38 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
For 2007 the handlebars have been made higher and moved further back, to give a more relaxed riding position. The high screen, which was previously available as an accessory option also now comes fitted as standard.
|
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40/10W-50 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Battery
|
YTX12-BS |
|
Spark plugs
|
NGK CR8EK, NGK CR8EIX |
|
Idle speed
|
1100 +/- 100 RPM |
|
Chain size
|
530 |
|
Chain links
|
106 |
|
Sprockets
|
19/42 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
