| Triumph's profilation of this bike |

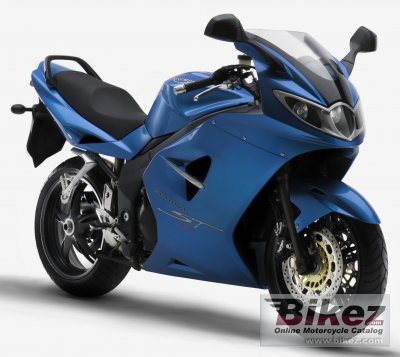

| Life is full of compromises, as are many motorcycles. The Sprint ST, thankfully, doesn´t have to make any. It´s a sports bike that covers miles, a touring bike that carves corners with a truly usable mix of poise, power and all-round practicality. |
|
General information |
|
Model name
|
Triumph Sprint ST |
|
Model year
|
2005 |
|
Category
|
Sport touring |
|
Rating
|
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1050.0 ccm (64.07 cubic inches) |
|
Engine type
|
In-line three, four-stroke |
|
Power output
|
125.0 HP (91.2 kW)) @ 9250 RPM |
|
Torque
|
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 5000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
79.0 x 71.4 mm (3.1 x 2.8 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital - inductive type - via electronic engine managment system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium beam perimeter |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
43mm cartridge forks with dual rate springs and adjustable preload |
|
Rear suspension
|
Monoshock with adjustable preload and rebound damping |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. 4-piston caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
210.0 kg (463.0 pounds) |
|
Power/weight ratio
|
0.5952 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1228 mm (48.3 inches) |
|
Overall length
|
2114 mm (83.2 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Wheelbase
|
1457 mm (57.4 inches) |
|
Fuel capacity
|
16.60 litres (4.39 US gallons) |
|
Other specifications |
|
Color options
|
Aluminium Silver, Caspian Blue |
