| Triumph's profilation of this bike |

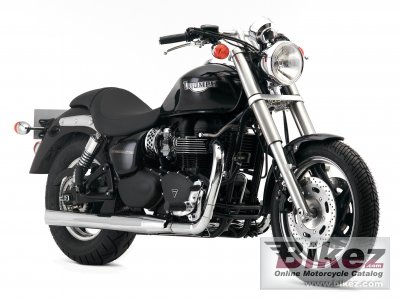

| Dark, brooding lines and a pared-down hot-rod essence make the Speedmaster a standout middleweight cruiser from every angle.
|
|
General information |
|
Model name
|
Triumph Speedmaster |
|
Year
|
2007 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
865.0 ccm (52.78 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
55.0 HP (40.1 kW)) @ 6750 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4800 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital - inductive type |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Rake (fork angle)
|
33.3° |
|
Front suspension
|
41mm forks |
|
Rear suspension
|
Chromed spring twin shocks with adjustable preload |
|
Front tire
|
110/80-18 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
285 mm (11.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
228.6 kg (504.0 pounds) |
|
Power/weight ratio
|
0.2406 HP/kg |
|
Seat height
|
720 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2420 mm (95.3 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Wheelbase
|
1655 mm (65.2 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Mulberry Red. Phantom Black/Tornado Red. Phantom Black. Phantom Black/Sunset Red |
|
Starter
|
Electric |
